Position in vehicle:

Product attributes:

additional info:

Volvo 200: For Propeller shaft type 1140, front and center joints only!

Volvo 700: For Propeller shaft type 02, front and center joints only!

Service instructions:

For the 200 and 700 series, there are various For the 200 and 700 series, there are various Propeller shaft that are not specifically assigned to particular vehicle variants but are distinguished solely by shaft type.

For the 200 series, up to model year 1984, there are types 1140 and 1310. These can be easily identified by the diameter of the front Propeller shaft section.

Type 1140: 44.5 mm diameter

Type 1310: 50.8 mm diameter
When selecting replacement parts, it is essential to pay attention to these types!

From model year 1985 onward, only shaft type 03 is used, which, however, can be equipped with two different universal joints! In this case, the only way to determine the correct type is to measure the universal joint width (diameter).


Type 1140: 44.5 mm diameter


``` The 700 series has three types:

Type 02: front shaft diameter 44.5 mm

Type 03: front shaft diameter 50.8 mm

Type 13: This type can be identified by measuring the distance from the center of the cardan shaft center bearing to the center of the universal joint. The measurement is 208 mm. (In contrast, shaft type 03 has a distance of only 106 mm.)
Here too, the shaft type must be determined when selecting replacement parts. that are not specifically assigned to particular vehicle variants but are distinguished solely by shaft type.

For the 200 series, up to model year 1984, there are types 1140 and 1310. These can be easily identified by the diameter of the front Propeller shaft section.

Type 1140: 44.5 mm diameter

Type 1310: 50.8 mm diameter
When selecting replacement parts, it is essential to pay attention to these types!

From model year 1985 onward, only shaft type 03 is used, which, however, can be equipped with two different universal joints! In this case, the only way to determine the correct type is to measure the universal joint width (diameter).


Type 1140: 44.5 mm diameter


``` The 700 series has three types:

Type 02: front shaft diameter 44.5 mm

Type 03: front shaft diameter 50.8 mm

Type 13: This type can be identified by measuring the distance from the center of the cardan shaft center bearing to the center of the universal joint. The measurement is 208 mm. (In contrast, shaft type 03 has a distance of only 106 mm.)
Here too, the shaft type must be determined when selecting replacement parts.

applicable for:

additional References:

Alternatives:

	Product No Reference	Description	Price EUR	available

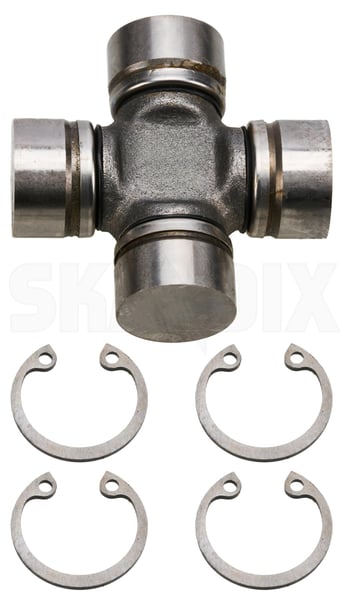

	1000112 672037	Joint, Propeller shaft Universal joint Volvo 120, 130, 220, 140, 200, 700, P1800, P445, P210, PV Diameter: 61 mm	28,52

recommended Accessories:

ⓘThese parts can be purchased additionally if required.

	Product No Reference	Description	Price EUR	available
	1000115 273202	Mounting kit, Propeller shaft joint Volvo 120, 130, 220, 140, 200, P1800, PV Thread size: 5/16" Thread type: with UNF inch Thread Supplementary Info: Do not use part more than once	10,80
	1026273	Grease gun universal	34,98
	1026316	Grease gun universal Thread size: M10x1 Contents: 80 ml	16,50
	1032967	Circlip Pliers Kit universal Gripper type: bend Gripper type: for inner Gripper type: for outer Gripper type: straight Surface: chromed Length: 170 mm	22,82
