Product attributes:

additional info:

Two different oil pans can be installed in the vehicles at the factory. They differ in the thread size of the oil drain plug, among other things:

Volvo OE 32137258
- M16 thread size

Volvo OE 30750166
- M10 thread size

Since the oil pan with the original number 30750166 has been replaced by the original number 32137258, the following oil drain plug is required if the oil pan has been replaced or is installed at the factory:

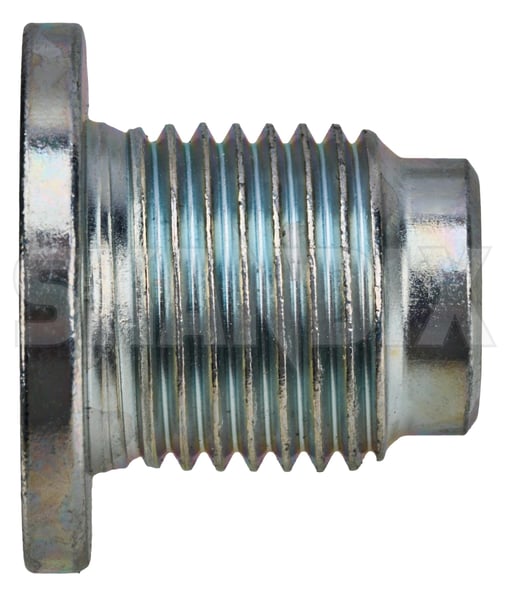

- 1112356 (M16) + sealing ring 1076854

ATTENTION, exception:

There are non-original oil pans that have the OE number 32137258, but contain an M10 oil drain plug. Example: Skandix Art. 1030801. If this or the oil pan with OE 30750166 is installed, the following oil drain plug is required:
- 1027168 (M10) + sealing ring 1018057

If in doubt, the thread size of the oil drain plug must be checked before replacing.

applicable for:

recommended Accessories:

ⓘThese parts can be purchased additionally if required.

	Product No Reference	Description	Price EUR	available
	1076854 32255103	Seal ring, Oil drain plug M16 Volvo C30, S40, V50 (2004-), S60 (2011-2018), S80 (2007-), V40 (2013-), V40 CC, V60 (2011-2018), V70 (2008-) Supplementary Info: Please note additional info!	0,95
	1055470	Oil Service reminder Tag Oil Change (vintage) universal Width: 74 mm Length: 88 mm Scope of delivery: with Wire SKANDIX	1,81
