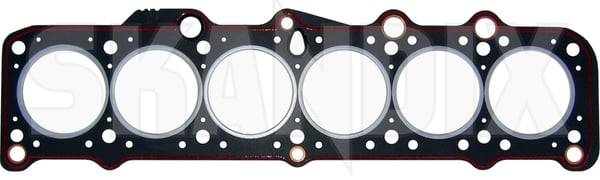

Gasket, Cylinder head 1,6 mm

Volvo 200, 700, 900

Gasket, Cylinder head 1,6 mm 9146009 (1000523) - Volvo 200, 700, 900 - ОЕ-Numbers: 1328019, 1328260, 1328976, 1389259, 6842491 - Keywords: cylinderhead gasket cylinder head 1 6 mm gasket cylinder head 16 mm packning seal Own-label 1,6 16 1 6 1,6 16mm 1 6mm 3 crankcase cylinderhead form gasket mm
Product No:1000523
Reference:9146009
Your price:70,25 EUR

incl. 19 % VAT
plus Shipping costs


Quantity proposal: 1

Availability:
3 pcs.
available from stock
Packet time:
Germany
1-2 working days

Product attributes:

Type: Form gasket
Position: Cylinderhead - Crankcase
Thickness Cylinder head gasket: 1,6 mm
Notches / Holes Number: 3
Weight: 266 g

additional info:

The thickness of the different piston seals balances out the piston overhang differences. Three notches(grooves): This is the thickest gasket = it always fits.

M12 head bolts are expanding bolts and must always be renewed!

Service instructions:

When using the textil gasket and M12 head bolts, the bolts must be retightened after 1000-2000 driving kilometres!
Do not untighten the screw before and then, tighten it over a 90° angle of rotation in one move.

applicable for:

Model
Volvo 240 restricted on: engine type, refer additional info
Volvo 740, 760, 780 restricted on: engine type, refer additional info
Volvo 940, 960 restricted on: engine type, refer additional info

Please select your car model first to get an exact fitting approval for this part.

additional References:

ОЕ-Numbers: 1328019, 1328260, 1328976, 1389259, 6842491

Alternatives:

Product No
Reference		 Description Price EUR available
Gasket, Cylinder head 1,5 mm 9146008 (1000524) - Volvo 200, 700, 900 1000524
9146008		 Gasket, Cylinder head 1,5 mm
Volvo 200, 700, 900
  • Type: Form gasket
  • Position: Cylinderhead - Crankcase
  • Notches / Holes Number: 2
  • Supplementary Info: Please note additional info!
 79,00 available on demand
Gasket, Cylinder head 1,6 mm 9146009 (1004457) - Volvo 200, 700, 900
OEM Quality
 1004457
9146009		 Gasket, Cylinder head 1,6 mm
Volvo 200, 700, 900
  • Type: Form gasket
  • Position: Cylinderhead - Crankcase
  • Material: Metal
  • Notches / Holes Number: 3
 120,35 available from stock

recommended Accessories:
ⓘThese parts can be purchased additionally if required.

Product No
Reference		 Description Price EUR available
Gasket set, Cylinder head 271435 (1000489) - Volvo 200, 700, 900 1000489
271435		 Gasket set, Cylinder head
Volvo 200, 700, 900
  • Scope of delivery: without Cylinder head gasket
 99,21 available from stock
Cylinder head bolt M12 1328871 (1004676) - Volvo 200, 700, 850, 900, S70, V70 (-2000), S80 (-2006), V70 P26 (2001-2007) 1004676
1328871		 Cylinder head bolt M12
Volvo 200, 700, 850, 900, S70, V70 (-2000), S80 (-2006), V70 P26 (2001-2007)
  • Length: 115 mm
  • Bolt/Nut version: Stretch Bolt
  • Supplementary Info: Do not use part more than once
 3,48 available from stock
Guide pins, Cylinder head mounting 9995234 (1018777) - Volvo 200, 700, 900 1018777
9995234		 Guide pins, Cylinder head mounting
Volvo 200, 700, 900Volvo Genuine		 discontinued
