Replacing a wiper blade
Volvo XC90 (16-)
10.11.2023Regarding the difficulties when changing the wiper blades, we decided to explain it step by step to take all the particularities into consideration . For a better illustration we have disassembled the wiper arm, usually that´s not necessary.

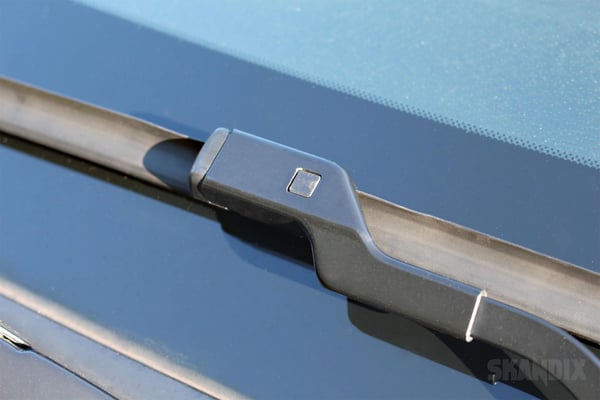

View at the car.

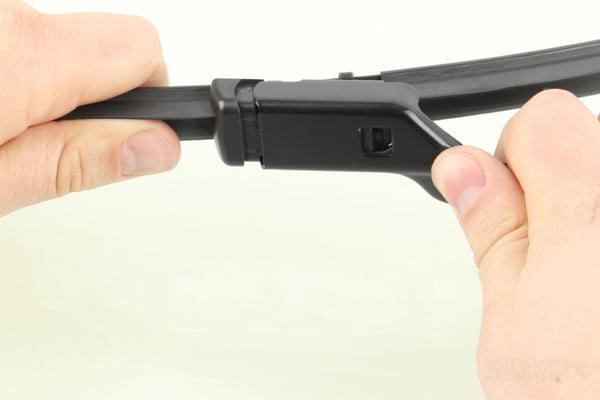

Press down the clip.
Thereby carefully pull the wiper blade.
Vie on the disassembled wiper blade.
Profile of the wiper blade.
Profile showing the way the blade has to be guided into the arm.
Guide the blade without force into the arm. Position the blade with a small gap in front of the arm to meet the guidance properly.
Now insert the wiper blade completely.
Make sure the clip engages.
- All notes serve only as an example and do not replace the workshop instructions of the automobile manufacturers! All information is supplied without guarantee!
