Technical hints: Repair kit gear selector automatic transmission

Repair kit gear selector automatic transmission

30.11.2021

Repair instructions for the push button in the selector lever. Original this repair is not provided, Volvo only supplies the complete selector lever.

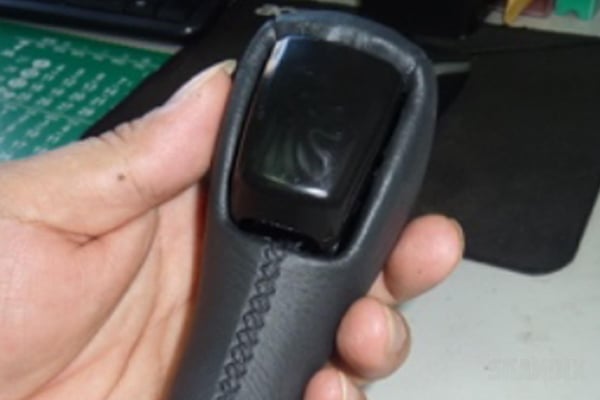

The old button is released with a small screwdriver...

...and then pushed out.

Now push the retainer pin to one side.

Then pull it out completely with pliers.

Here you can see the separate parts.

Now hook up the spring.

Fit the new knob and retainer pin.

And put the button back into the selector lever.

Finished!

All notes serve only as an example and do not replace the workshop instructions of the automobile manufacturers! All information is supplied without guarantee!
