Installing the sun visor hinge

Volvo P1800, P1800 ES

02.03.2020

Here we show how to install the sun visor hinge in a left sun visor (1051777). With the sun visor on the right (item number 1051779) the installation works accordingly (mirror-inverted).


The sun visor without the hinge. Screw and washer are already mounted.


Hinge with screw and washer.


To insert the hinge you have to cut a hole into the sun visor. To find the point to cut, you have to feel the frame under the cover. On the front side right beneath the screw. When you find the bracket and pipe where the bolt of the hinge has to be inserted you got it.

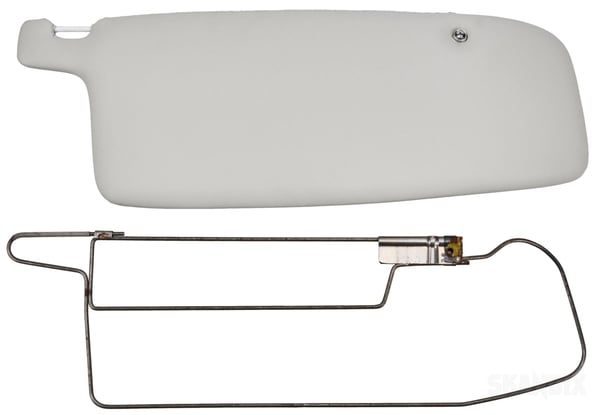

We have put a frame without the cover on a sunvisor. Here you can easily see what your fingers are looking for in the previous description.


When you are sure about the correct position you can cut through the cover.


After the cut is placed properly, you can see the bracket in which the hinge will be inserted.


Attention: This picture shows the inside of the sun visor for better understanding. Do not cut or open your sun visor this way!

Here you can see the the bracket where the hinge has to be inserted.


Attention: This picture shows the frame of the sun visor for better understanding. Do not disassemble your sun visor this way!

Here you can see a part of the upper frame and the bracket including the sheet nut.


Attention: This picture shows the frame of the sun visor for better understanding. Do not disassemble your sun visor this way!

In the following three pictures you can see how to insert the hinge correctly.

Most important is that the nose (red circle mark) does not point up, like shown in the picture but points down (next picture) to slide between the "wings" of the bracket.


Attention: This picture shows the frame of the sun visor for better understanding. Do not disassemble your sun visor this way!

Push the hinge into the bracket until the nose appears in the cutout of the bracket.


Attention: This picture shows the frame of the sun visor for better understanding. Do not disassemble your sun visor this way!

When the hinge is inserted correctly it can easily be turned with the nose in the cutout.


Attention: This picture shows the frame of the sun visor for better understanding. Do not disassemble your sun visor this way!


Attention: This picture shows the inside of the sun visor for better understanding. Do not cut or open your sun visor this way!

Here you can see the inserted hinge with the nose in the correct position (red circle mark).


Important: To fasten the screw, it is best to press the sun visor onto a table edge, at the position of the frame, otherwise the screw cannot be firmly turned, because the mounting of the screw has been bent apart by installing the fastening.


This picture shows the ready installed hinge with fastened screw.


Overall view of the sun visor now ready for installation in the car.

  • All notes serve only as an example and do not replace the workshop instructions of the automobile manufacturers! All information is supplied without guarantee!
