Technical hints: Installation frame for radio

Installation frame for radio

23.11.2021

Here we show the necessary adaptions to install the radio frame into the lower dashboard of the Volvo 240 / 260 from 1981 and later.

Starting point

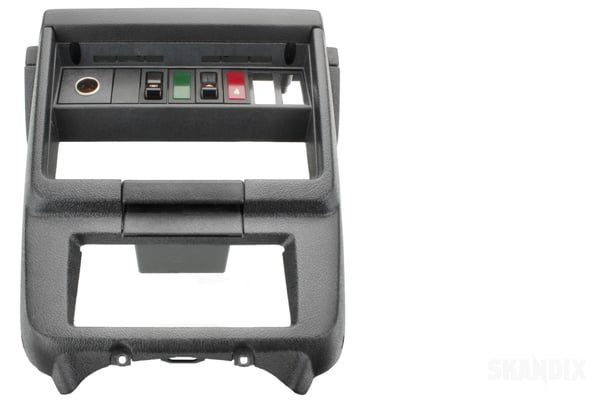

Remove the lower dashboard section.

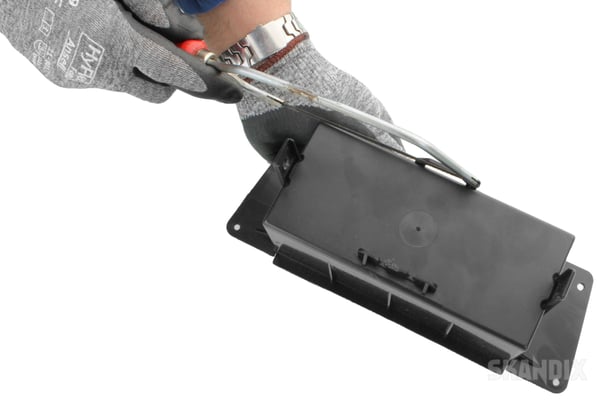

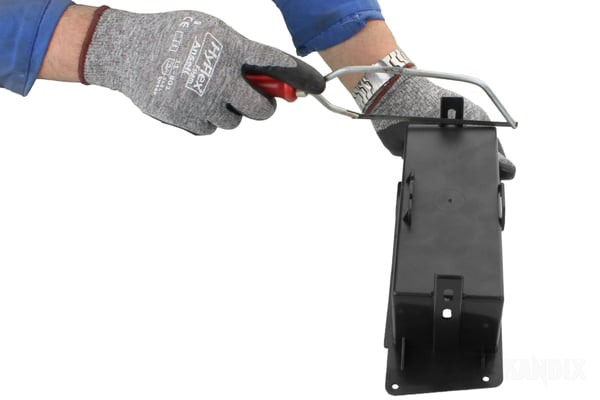

Carefully cut out the backside of the storage tray.

Attention: do not cut off the brackets.

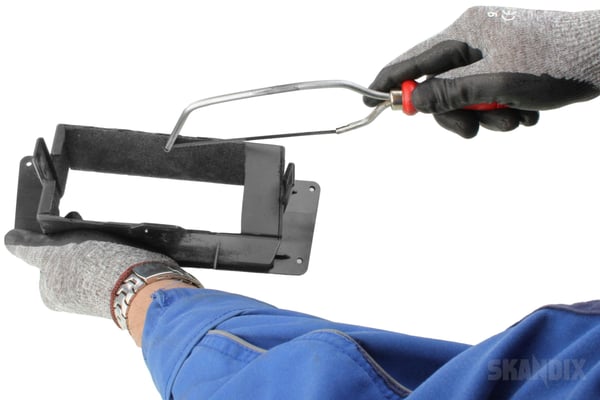

Remove the backside completely.

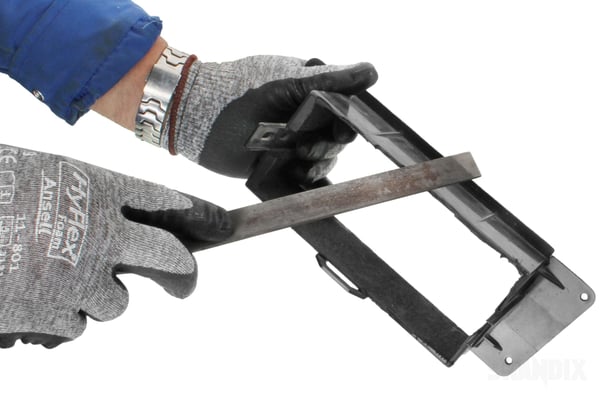

Smooth the edges.

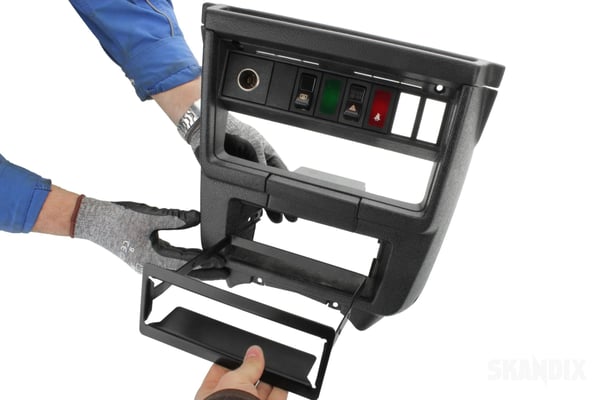

Attach the modified storage tray to the lower dashboard section...

... and insert the radio frame from the front side.

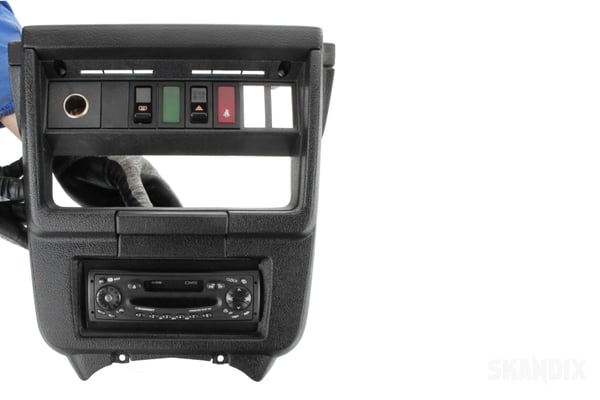

Now you can mount your radio. Finished!

All notes serve only as an example and do not replace the workshop instructions of the automobile manufacturers! All information is supplied without guarantee!
