Headlight, indicator unit without motor for headlight adjustment
Volvo V70 (P26), V70XC (XC70)
09.12.2021Transfer the existing motor for headlamp adjustment into the new headlamp.

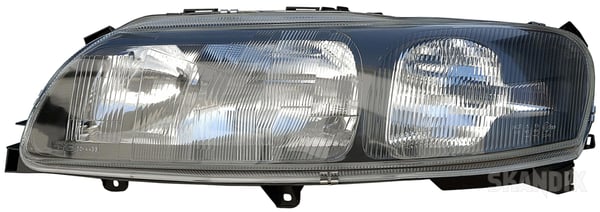

Headlamp - indicator unit.

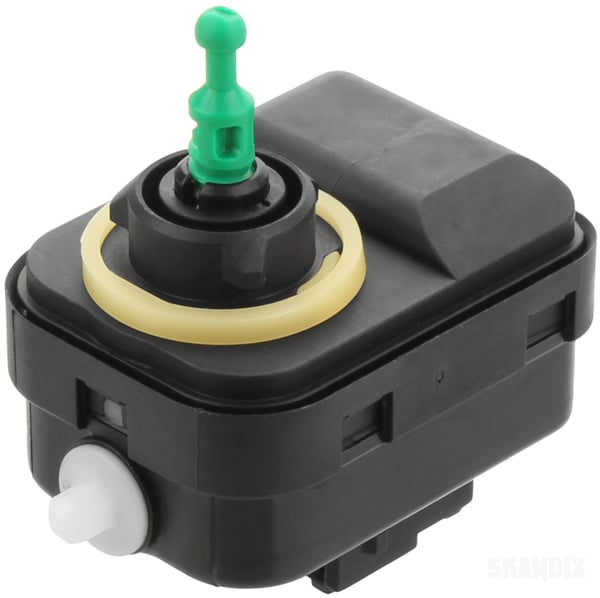

Motor for headlight adjustment.

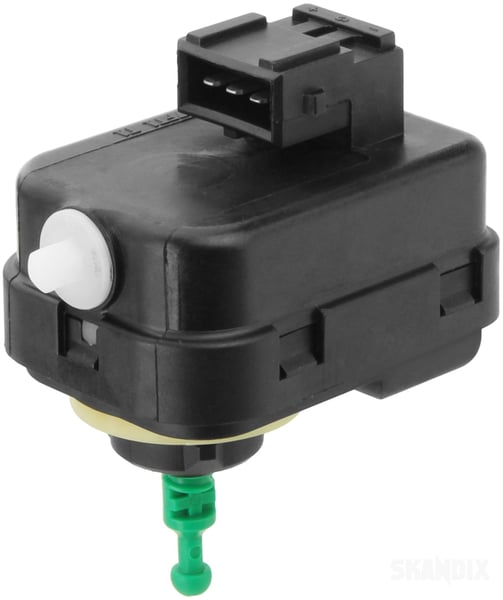

Motor for headlight adjustment.
Backside headlight - indicator unit.
Remove the sealing cap.
Turn the actuator dummy counterclockwise to unlock...
... and remove it.

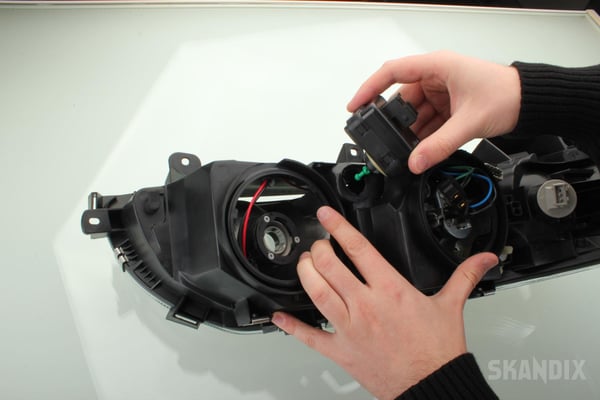

When inserting the new actuator, reach through the openings and hold the reflector firmly so that the new servomotor can engage correctly.

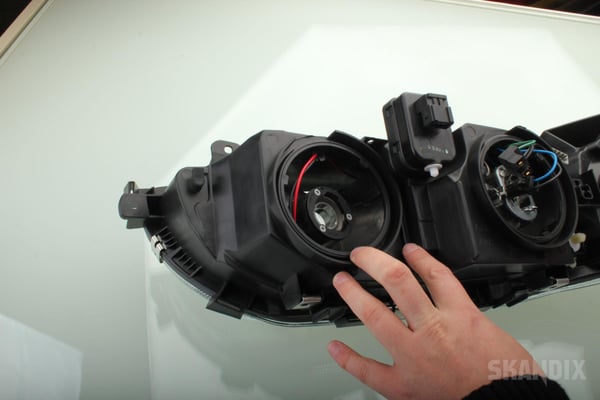

Lock the actuator clockwise - Done!
- All notes serve only as an example and do not replace the workshop instructions of the automobile manufacturers! All information is supplied without guarantee!
