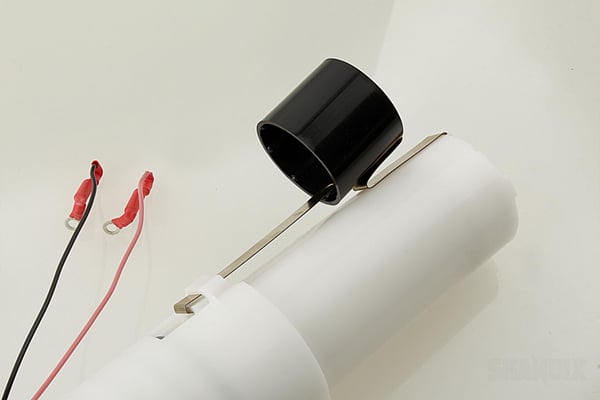

Fuel Sender Unit
Volvo 900, 700, 200
22.12.2021Instruction manual to change the fuel pump.
Compress the Clic-clamp using a suitable tool.
Push a small screwdriver into the clamp and rotate it a bit to unlatch the clamp. Then pull the fuel hose upwards to disconnect it.
Remove the nuts from the electric terminals.
Pull and rotate the pump carefully to separate it from the bracket.
Slide the new fuel pump into the bracket up to the stop.
Press the new fuel filter (Skandix 1014135) with slight pressure on the new pump.
Now first reconnect the wires and then the hose.
Install the Clic-clamp using a suitable tool. You can also use one of the clamps supplied with the pump.
- All notes serve only as an example and do not replace the workshop instructions of the automobile manufacturers! All information is supplied without guarantee!
