Floor plugs
Volvo P1800
23.11.2021Correct installation of the Volvo P1800 floor plugs.
Item numbers:
1019003
1019005
Tools:
hammer
socket
extension
Insert plugs from above into the floor plate.
The plugs in the sills can be pushed in manually. The small plug in the bottom plate must be pressed in.
Put a long socket on the plug and use a hammer to drive it into the hole.
The mounted plug must look like this. The edges are completely flat.

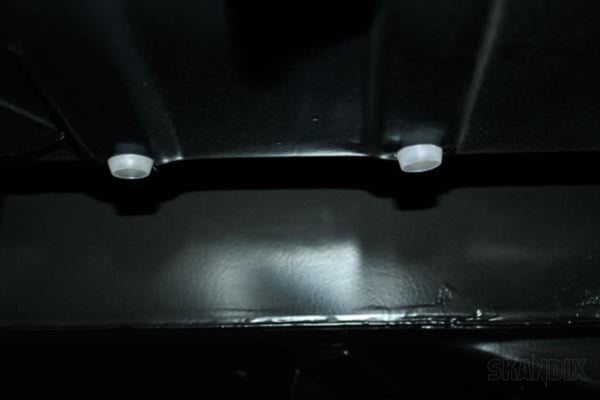

Looking underneath you can see that the plugs are pushed through and sit tight in the floor panel.
The plug under the seat rail can also be pressed in from below.
- All notes serve only as an example and do not replace the workshop instructions of the automobile manufacturers! All information is supplied without guarantee!
