Button, tripmeter reset
Volvo 200
23.11.2021We show the replacement of the button for resetting the trip meter.

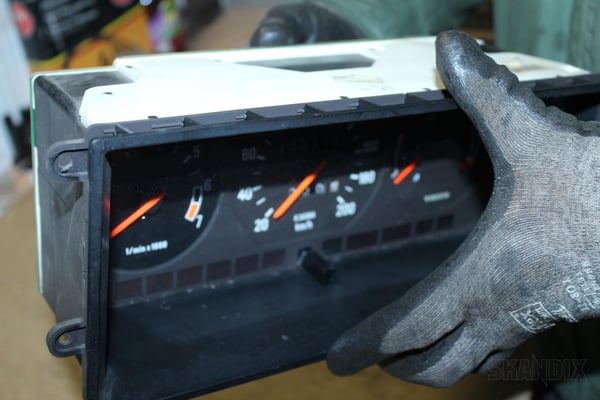

The tripmeter reset button is broken and useless.

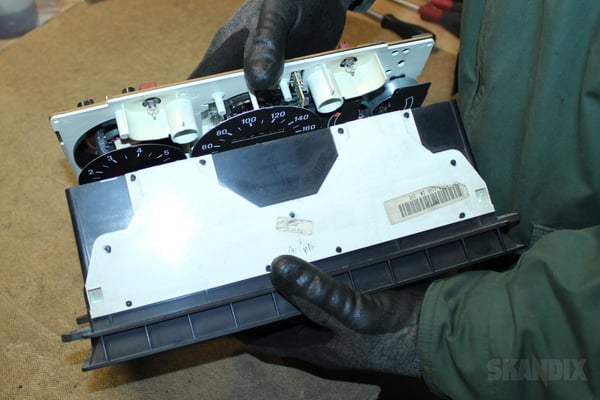

After removing the instrument cluster from the dashboard the circuit board can be removed.

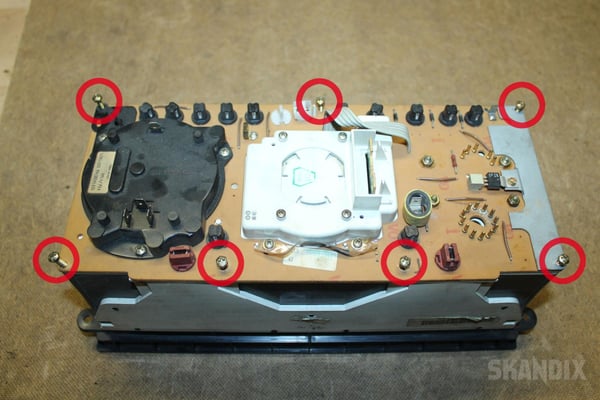

Therefore remove these 7 screws.

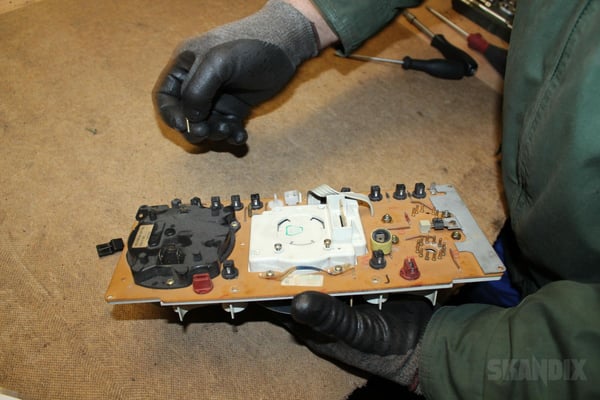

Detach the circuit board from the housing.
Remove the 4 screws holding the speedometer.

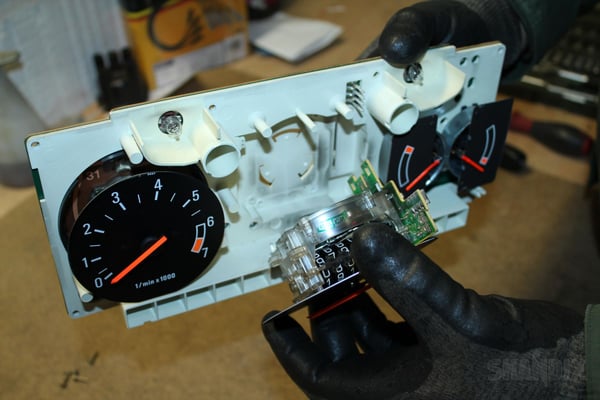

Detach the speedo.

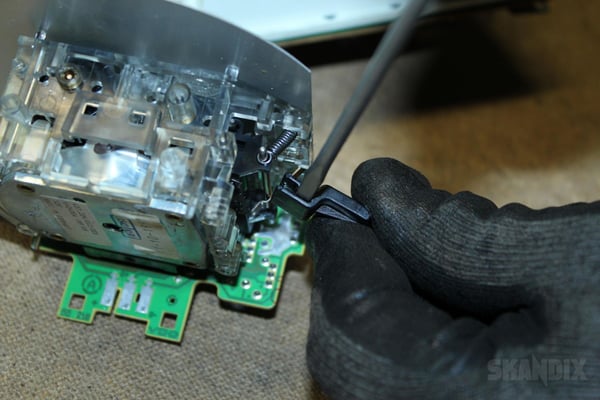

Unlock the old button carefully with a small screw driver and pull it out.

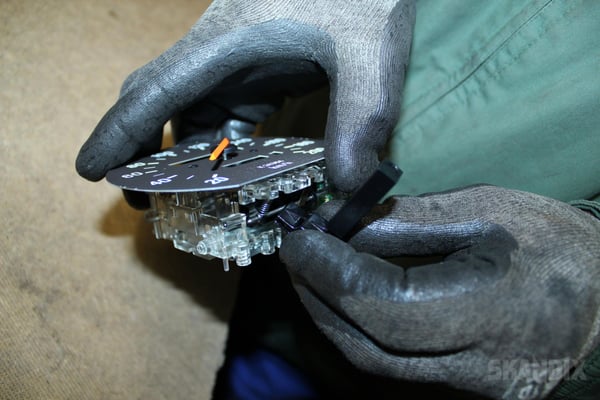

Insert the new button.

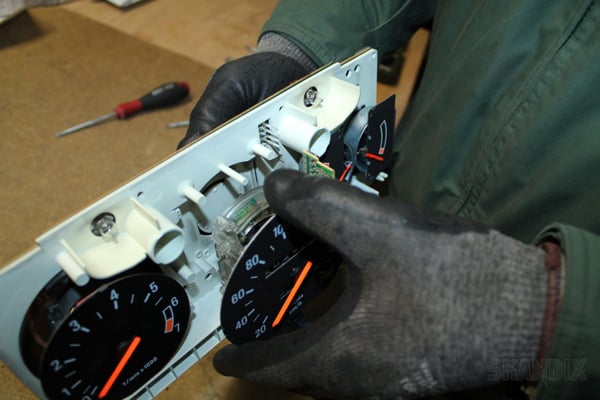

Now you can put the speedo back to the instrument cluster.

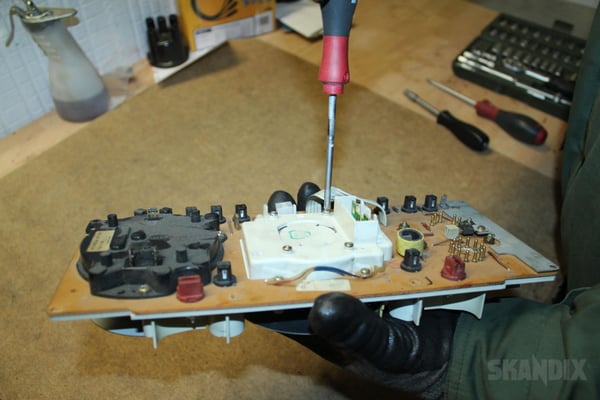

Screw the circuit board back in place.

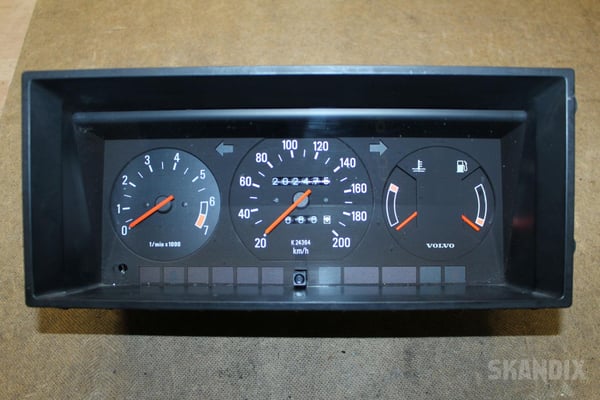

Reassemble the instrument cluster.
FINISHED!
- All notes serve only as an example and do not replace the workshop instructions of the automobile manufacturers! All information is supplied without guarantee!
